Examples of conditions for common use cases

Provides examples and explanations of conditions for common use cases.

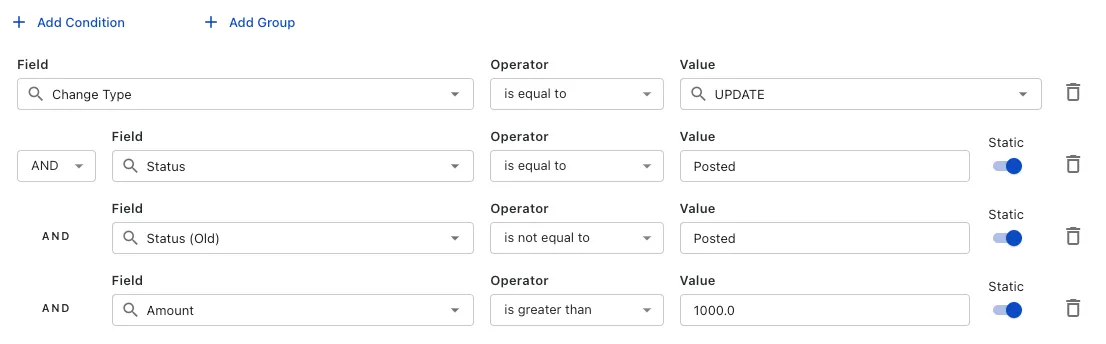

Conditions with the AND operator

The conditions defined in the figure are equal to the following JEXL expression:

changeType == 'UPDATE' && Invoice.Status == 'Posted' && Invoice.Status_old != 'Posted' && Invoice.Amount > 1000.0

It is triggered when an invoice is posted with an amount greater than 1000.

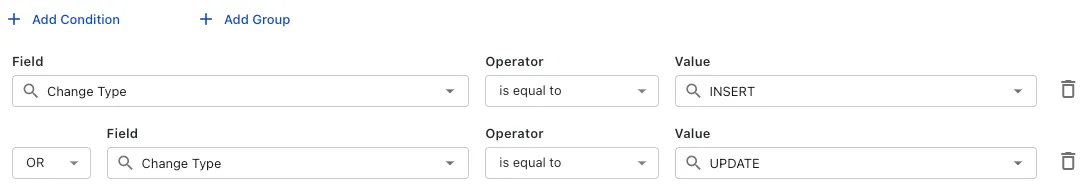

Conditions for multiple change types

The conditions defined in the figure are equal to the following JEXL expression:

changeType == 'INSERT' || changeType == 'UPDATE'

It is triggered when a record of the base object is created or updated.

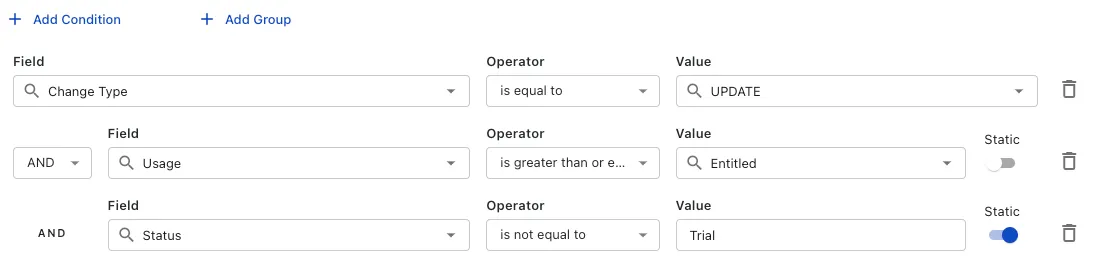

Conditions for custom objects

The conditions defined in the figure are equal to the following JEXL expression:

changeType == 'UPDATE' && default__entitlement.Usage__c >= default__entitlement.Entitled__c && default__entitlement.Status != 'Trial'

It is triggered when an entitlement record is updated if the usage equals to or greater than the entitlement and the entitlement status is not trial.

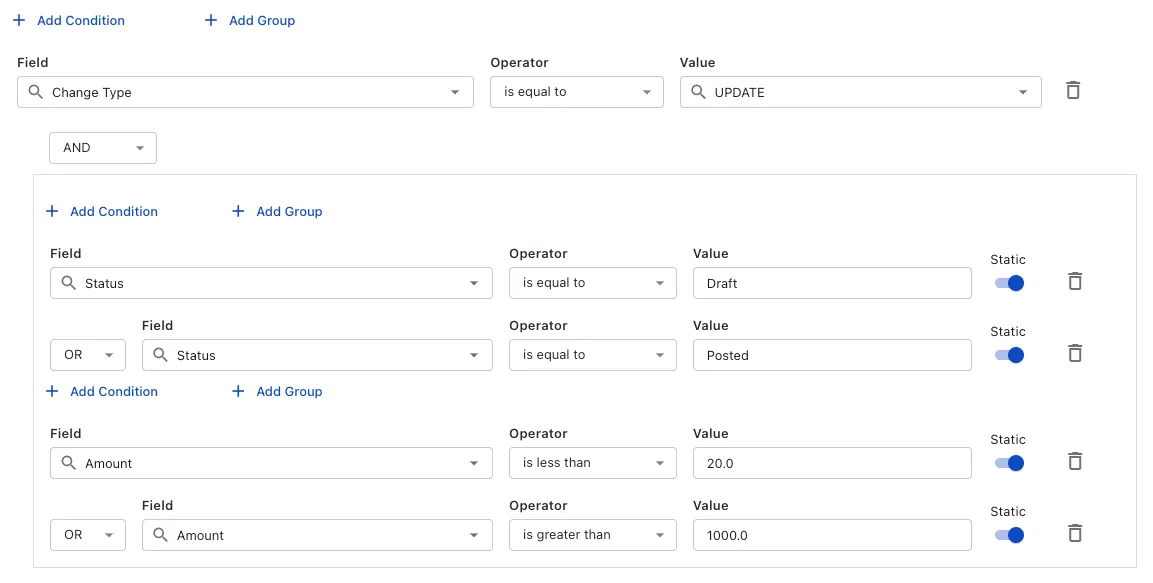

Conditions and groups

The conditions defined in the figure are equal to the following JEXL expression:

changeType == 'UPDATE' && (Invoice.Status == 'Draft' || Invoice.Status == 'Posted') && (Invoice.Amount < 20.0 || Invoice.Amount > 1000.0)

It is triggered when an invoice of Draft or Posted status is updated with an amount less than 20 or greater than 1000.

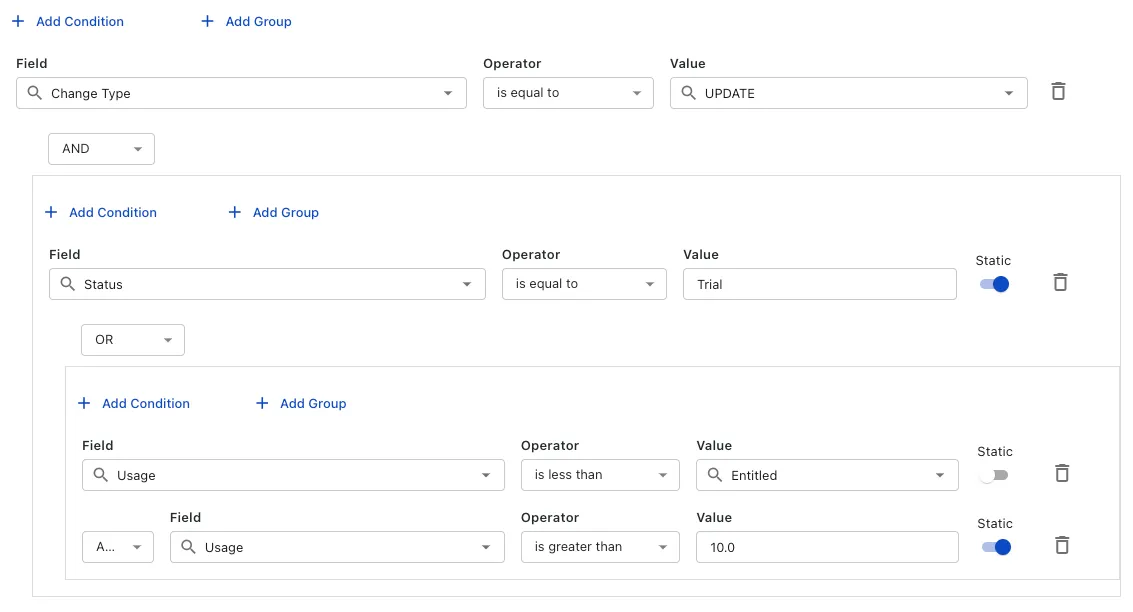

Groups and sub-groups

The conditions defined in the figure are equal to the following JEXL expression:

changeType == 'UPDATE' && (default__entitlements.Status__c == 'Trial' || (default__entitlements.Usage__c < default__entitlements.Entitled__c && default__entitlements.Usage__c > 10.0))

It is triggered when an entitlement record is updated and the entitlement status is trial, or the usage is less than the entitled value and greater than 10.
